Our projection screen "Palumylu" was developped by applying the technology of supercritical synthesis.
This screen has the properties of high brightness, large viewing angle, and good color balance.
It is easy to install on the glass windows, acrylic plates, etc.
Impressive digital signage by palumylu screen and projector.
Overview
You can view an image from any angles
High contrast, and high brightness was achieved for both the rear and front projection.
Short focus projector is available due to the large-angle light scattering.
Suitable for a projection to wide size.
It is possible for 100 inch size screen.
Good color reproducibility
Color balance was tuned to be the best.

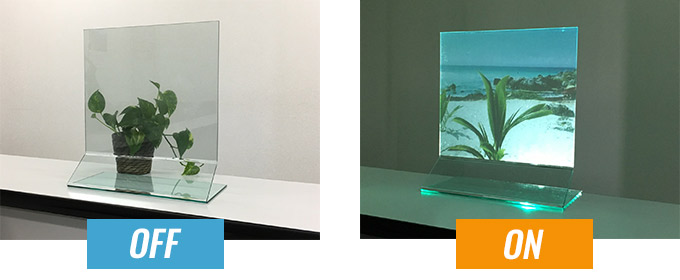

Transparent glass windows display.
It is useful for glass signage and events.
Low cost
Our products are not only the screen itself but also the nano-materials for optical use.
Easy installation
The film can be easily set on a flat plane by water splaying.
Movies
Properties of transparent screens
Screen
Cost
Transparency
Viewing angle
Color balance
Brightness
Palumylu C-8
Excellent
Excellent
Excellent
Excellent
Good
Palumylu C-15
Excellent
Good
Excellent
Excellent
Excellent
Company A
Poor
Excellent
Excellent
Excellent-Good
Excellent-Good
Company B
Poor
Good
Excellent
Good
Excellent
Company C
Good
Fair
Fair
Fair
Excellent
Company D
Good
Fair
Good
Good
Excellent
Company E
Good
Fair
Good
Good
Excellent
Lineup

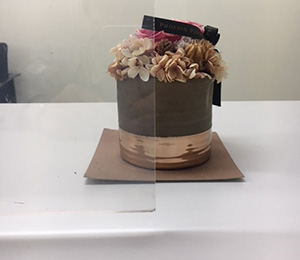

Transparent type (Palumylu C-8, Palumylu C-15)
For both the front and rear projection.

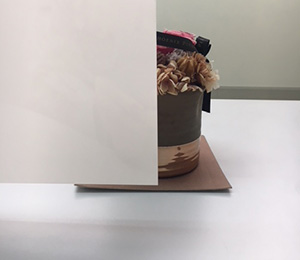

White type (Palumylu W)
High brightness.
For both the front and rear projection.
Wide viewing angle.

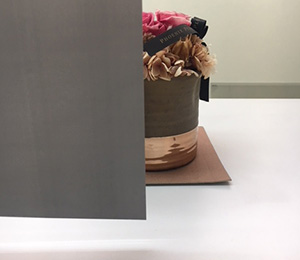

Black type (Palumylu B)
High contrast image.
For both the front and rear projection.
Wide viewing angle.
Specifications of Palumylu screen
Type
C-8
C-15
C-30
W
B
Appearance
Clear
Clear
Clear
White
Black
Thickness (um)
100
100
125
125
125
Base film
PET
Light transmittance (%)
87
78
84
49
10
Haze (%)
7
11
30
98
98
Examples
It is available for exhibitions, airports, stations, stadiums, live performances, and amusement parks.

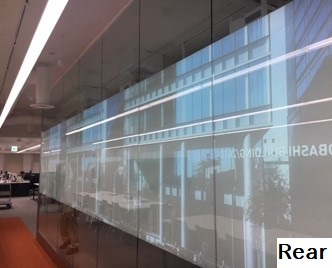

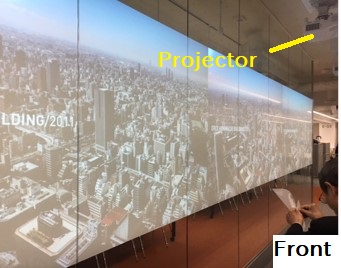

A constraction company
7m x 1.3m white type screen (opaque) on partition glass. Three projectors were used. Both for rear and front projections were applied.

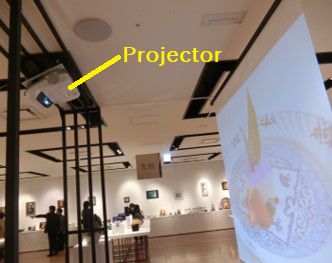

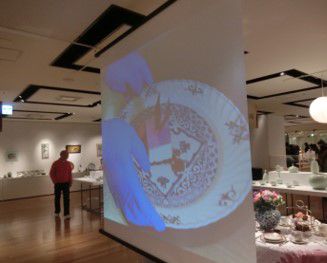

Hankyu Umeda Main Store 9F [Ceramics exhibition, 2018]
80 inch white type screen (opaque).

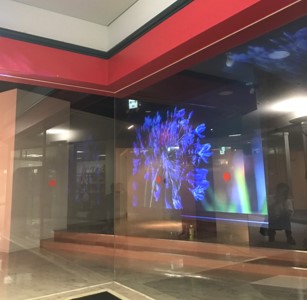

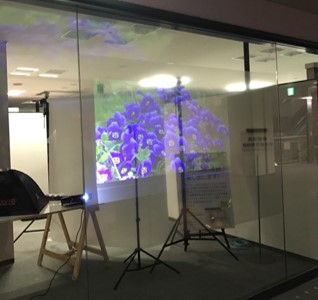

Osaka South Bay ATC 10F Design Floor
100 inch transparent type screen on glass plate.
Using a 3000 lm projector (rear projection)

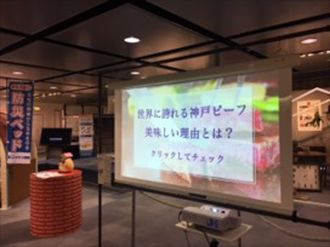

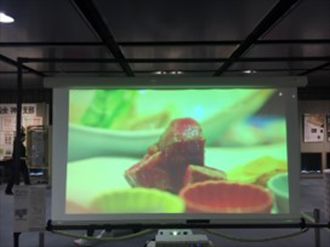

Kobe City Hall, Exhibition of disarster prevention
80 inch white type screen (opaque) with short focus projector.

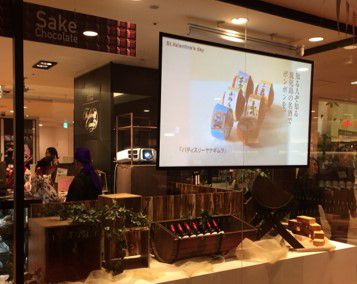

Hankyu Umeda Main Store 9F [Valentine event, 2018]
